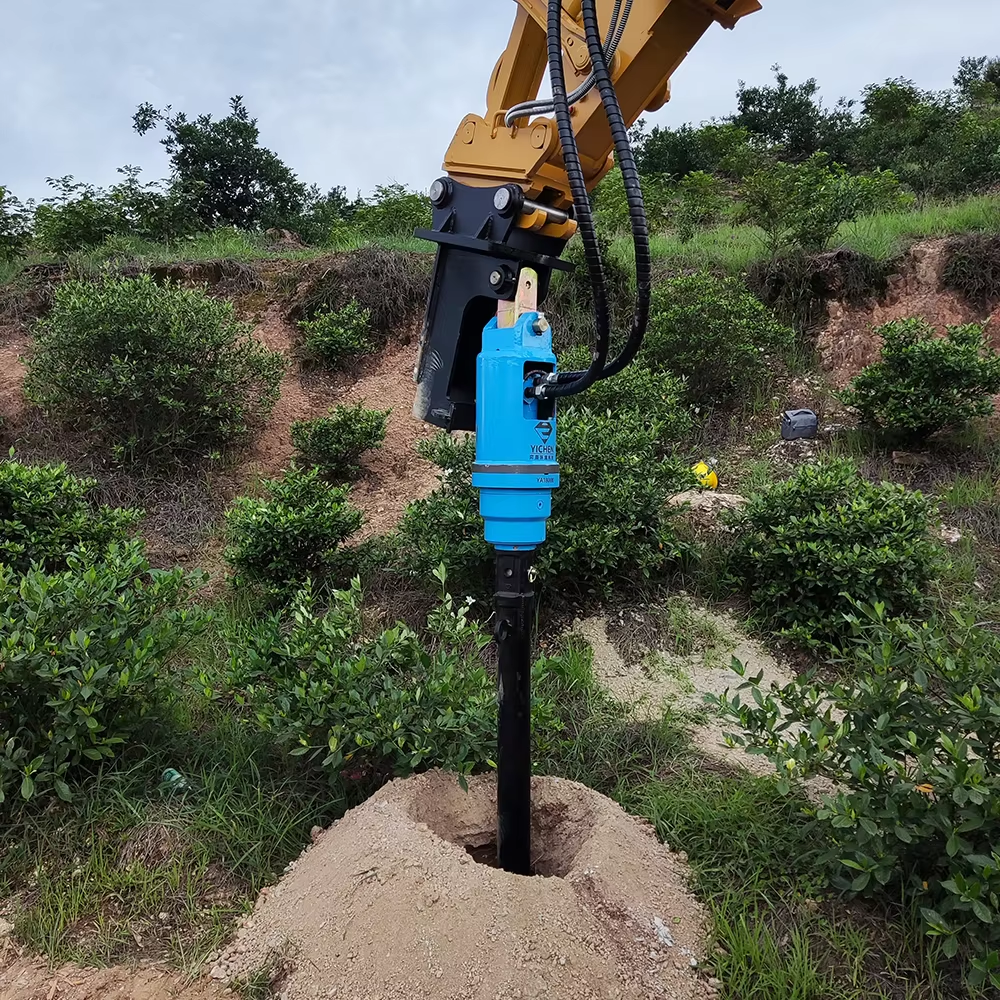

MOD.
|
AP - 18
|
AP - 22
|
AP - 36
|
AP - 46
|
|
Shaft
|
2.875" x 0.217" Nominal
|
3.5" x 0.3" Nominal
|
4.5" x 0.337" Nominal
|
5.5" x 0.361" Nominal
|
|
Bolts
|
0.875"
|
0.875"
|
1"
|
1"
|
|
Helices
|
0.375" Thick, Helix Die-Pressed8",10", 12", 14" & 16" Diameter Available
|
0.5" Thick, Helix Die-Pressed8",10", 12", 14" & 16" Diameter Available
|
0.5" Thick, Helix Die-Pressed10",12", 14" & 16" Diameter Available
|
0.5" Thick, Helix Die-Pressed10",
12", 14" & 16" Diameter Available" |
|
Pitch
|
3"
|
3"
|
3"
|
3"
|
|
Coating
|
Galvanized (G), Bare Steel (NG),Epoxy Powder Coated (EP)
|
Galvanized (G), Bare Steel (NG),Epoxy Powder Coated (EP)
|
Galvanized (G), Bare Steel (NG),Epoxy Powder Coated (EP)
|
Galvanized (G), Bare Steel (NG), Epoxy Powder Coated (EP)
|
|
Compression Capacity
|
||||
|
Ultimate Capacity
|
36 tons
|
44 tons
|
72 tons
|
92 tons
|
|
Allowable Capacity
|
18 tons
|
22 tons
|
36 tons
|
46 tons
|
|
Tension Capacity
|
||||
|
Ultimate Capacity
|
32 tons
|
36 tons
|
62 tons
|
78 tons
|
|
Allowable Capacity
|
16 tons
|
18 tons
|
31 tons
|
39 tons
|
