Precision Cutting in Tunnel Excavation with Rock Saws
Controlled material removal using rock saws to reduce overbreak and structural damage
In modern tunnel construction, engineers are turning to rock saw technology because it cuts with such mechanical accuracy that they can avoid overbreak problems where too much rock gets removed past what was planned. Rock saws actually cut down on overbreak by about two thirds compared to traditional blasting methods, as shown in research published last year in Tunneling Engineering Journal. What's more, these saws save money too, cutting support costs around $180 for every meter of tunnel built. The technique works by making small cuts about half a meter at a time, which keeps the surrounding rock stable during excavation. This matters a lot when dealing with tricky underground formations that would otherwise collapse under blast vibrations.
Hydraulic rock saws for accurate cutting in confined underground spaces
Compact hydraulic rock saws deliver high-precision cutting in tunnels as narrow as 3 meters wide. With 270° articulation and 18,000 Nm of torque, these units enable curved tunnel profiles within a 15mm tolerance. The enclosed cutting path eliminates flyrock hazards associated with conventional excavation, enhancing safety without sacrificing accuracy.
Case study: Gotthard Base Tunnel extension demonstrates alignment accuracy with rock saws
When expanding through the Alps on the Gotthard Base Tunnel project, engineers used modular rock saw attachments that kept within about 12mm alignment on roughly 8 out of 10 ultra hard gneiss surfaces they encountered. This kind of precision made all the difference, allowing crews to move forward at around 4.5 meters per day while cutting down on concrete lining repairs by nearly 40% when compared with nearby areas where traditional drill and blast methods were still being used. The system had real time load monitoring too, which stopped most blade jams before they happened something that saved a lot of downtime since it would automatically adjust speeds whenever the rock density changed. These findings were highlighted in the latest issue of Tunneling Technology Review from earlier this year.
Enhancing Accuracy in Road Construction Through Rock Saw Technology

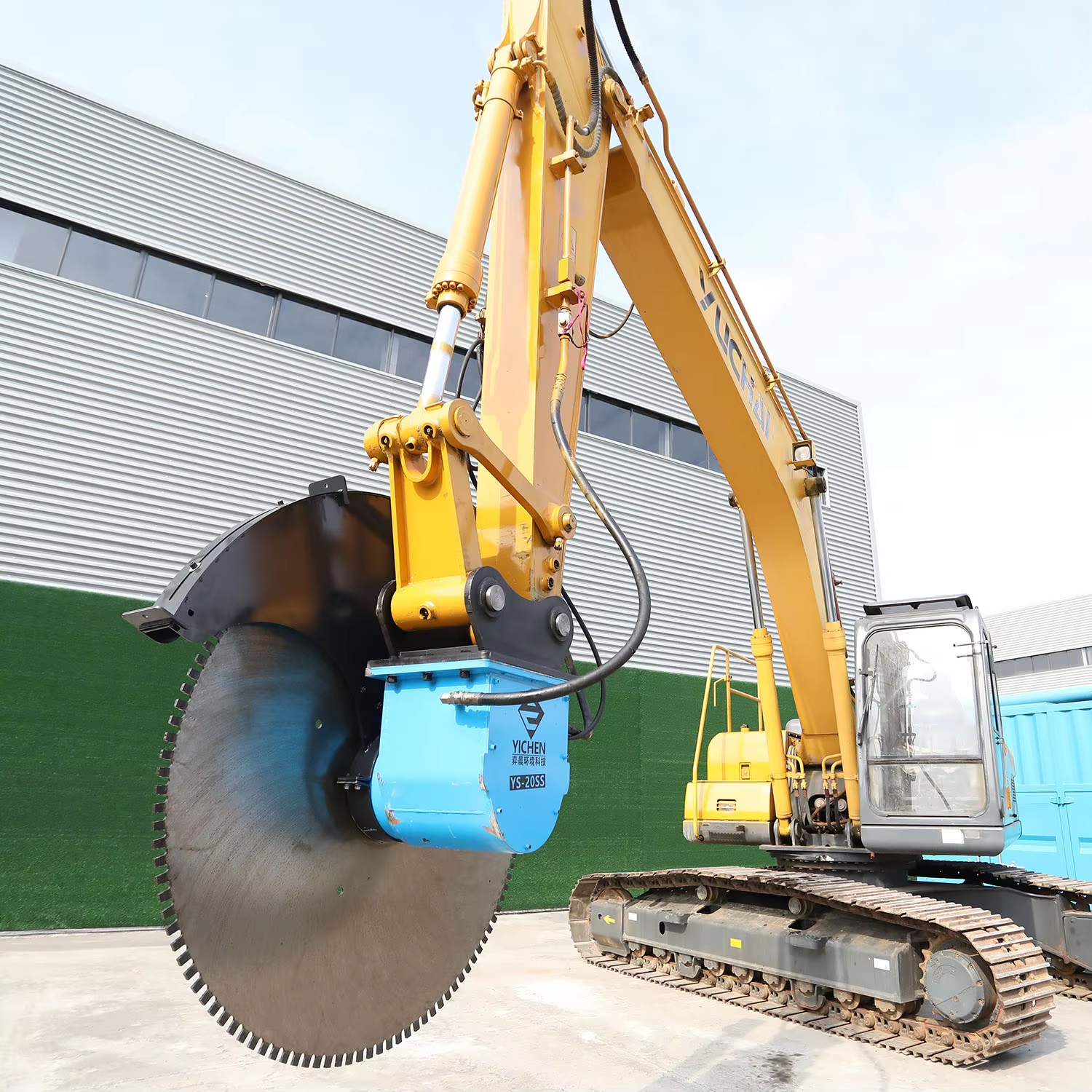

Excavator-Mounted Rock Saws for Precise Trenching in Rocky Terrain
Rock saws mounted on excavators offer pretty much surgical precision for trenching through tough materials like granite and basalt. These machines actually move about 25 percent less material compared to old school drilling techniques which helps keep those underground pipes and cables safe from damage. The GPS system built into these units gets things right within around 1.5 centimeters when laying down drainage lines across hilly terrain. What makes them really stand out are the dual axis cutting heads that tweak both blade speed and torque as they go along depending on what kind of rock they're facing. This means the trench walls stay stable even when working through cracked limestone formations that would typically cause problems for conventional equipment.
Real-Time Depth and Angle Adjustments During Highway Foundation Preparation
The latest equipment comes with laser guided depth control that's accurate within about 2 mm vertically when getting roadbeds ready. These machines have pressure sensitive heads that adjust automatically when moving from concrete surfaces to natural ground underneath, keeping those 45 degree embankments pretty much consistent throughout. The feedback systems really cut down on mistakes made by hand measurements, saving time on roughly 7 out of 10 highway jobs, particularly where slopes are between 3 and 5 percent. Most modern setups also include inertial measurement units these days, which means cutting angles get corrected automatically as work progresses. Crews can now tackle 300 meter foundation stretches across different types of soil and rock formations, hitting close to 98% of what engineers specify in their plans most of the time.
Rock Core Sampling and Geotechnical Analysis for Infrastructure Planning
Precision Rock Core Cutting for Reliable Geotechnical Testing
Rock saws today can cut core samples with deviations below 0.5 mm, which meets the ASTM D4543 standard for accurate dimensions. The diamond blades work best when run at controlled pressures between 40 and 60 MPa while keeping speeds under 300 RPM. This slower approach prevents those annoying heat cracks that used to plague traditional drilling methods. The result? Much better sample preservation without those pesky microcracks that messed up about a quarter of compression tests back in the day according to a study from the Geotechnical Materials Journal last year.
Impact of Accurate Sample Preparation on Structural Durability Assessments
The quality of high fidelity cores shows important details like how many fractures exist and what kind of weathering has happened, which plays a big role when designing foundations. According to research from last year looking at about 87 different bridge projects, engineers found that using saw cut samples actually needed around 19 percent less reinforcement compared to traditional drill split methods. Another advantage comes from rock saw technology that allows for parallel end grinding. This process helps make sure rock samples stay within the strict +/- 1 degree angle requirements needed for proper triaxial tests according to ISRM standards. Getting these angles right matters a lot for accurate test results.
Comparison: Traditional Drilling vs. Precision Rock Saws in Geological Sampling
| Factor | Traditional Drilling | Hydraulic Rock Saws |
|---|---|---|
| Sample Disturbance | High (Radial cracks common) | Low (Plunge-cut technique) |
| Surface Flatness | ±2.5 mm | ±0.3 mm |
| Testing Accuracy | ±15% UCS variance | ±5% UCS variance |
| Project Cost Impact | 12-18% redesign risk | 3-5% redesign risk |
Data sourced from 2024 Geotechnical Instrumentation Report (Page 47)
The controlled action of rock saws avoids rotational stresses that damage sample edges during coring—particularly beneficial in fractured limestone and schist formations encountered in highway infrastructure.
Integration of Hydraulic Rock Saws with Excavators for Versatile Project Demands
Advantages of Excavator-Mounted Rock Saws in Dynamic Road and Tunnel Environments
What makes these attachments stand out is how they mix on-the-go movement with pinpoint accuracy, letting operators move fast and cut precisely even when conditions change. According to research published last year in CCR Magazine, these tools cut down unwanted rock breakage by around 30% more than traditional hand-held equipment works in areas where different types of rock are mixed together. The real advantage comes from their plug-and-play setup that lets workers switch from preparing tunnel walls for support to making slots in roadbeds without missing a beat. This kind of flexibility is exactly what large scale construction sites need when dealing with all sorts of complicated underground work.
Smart Hydraulic Systems Enabling High-Torque, Low-Vibration Cutting in Hard Strata
Operating at 2,800–3,500 PSI, modern systems cut through granite and basalt while reducing vibration transmission to host excavators by 47% (E-Architect, 2023). Pressure-compensated valves dynamically regulate flow, preventing blade stall during abrupt changes in material density—a key advantage when working through layered urban infrastructure.
Innovations: Real-Time Feedback via Smart Sensors for Error Correction and Efficiency
Third-generation rock saws integrate MEMS gyroscopes and strain gauges that transmit over 120 data points per second to onboard processors. When blade deflection exceeds 0.5°, the system triggers immediate hydraulic corrections. Field tests confirm a 28% reduction in recuts versus earlier models, particularly in curved tunnels and angled foundation trenches.
FAQs
How do rock saws reduce overbreak in tunnel construction?
Rock saws offer mechanical accuracy, making cuts that significantly reduce overbreak compared to traditional blasting methods by about two-thirds.
What are the benefits of using hydraulic rock saws in confined spaces?
Hydraulic rock saws provide high-precision cutting with minimal flyrock hazards, ensuring safety and accuracy even in narrow tunnels.
Why are rock saws preferred over traditional drilling for geological sampling?
Rock saws minimize sample disturbance and ensure precise cutting angles, offering better testing accuracy with a reduced redesign risk compared to traditional drilling methods.
